SFR6063 is a large-scale repair and surface remanufacturing system based on industrial six-axis robot and slide rail. The system comprises a high-efficiency fiber laser with a process head, powder feed system, horizontal rotary table, biaxial positioner and man-machine interface control system integrated with a 6-axis motion robot.
The equipment has complete functions, diverse performances and strong versatility, which can realize the cladding of shaft surface, curved surface and special-shaped parts. Cooperating with the powder feeder independently developed by Senfeng, the cladding materials, and related processes can be flexibly selected for size repair, surface treatment, and strengthening.
- High level of process automation
- Inner hole laser cladding optional
- Little to no distortion
- Omni-directional cladding
- Support special and complex workpieces processing
| Name | Technical parameter | |
| Laser source | 6kW | |
| Robot (with 2 additional axes) | Model | M-20iD/25 |
| Arm span | 1,831mm | |
| Loading capacity | 25kg | |
| Repeated positioning | ±0.02mm | |
| Robot travel axis | 6,000mm | |
| Horizontal rotary table | Maximum loading capacity (with roller) | 15t |
| Maximum workpiece clamping diameter | 630mm | |
| Maximum workpiece rotation diameter | 1,500mm | |
| Maximum loading capacity (without roller) | 3t | |
| Spindle speed | 110 RPM | |
| Maximum workpiece length | 6,000mm | |
| Biaxial positioner | Loading capacity | 500kg |
| A-axis maximum rotation speed | 24 RPM | |
| C-axis maximum rotation speed | 37 RPM | |
| Deflection angle | ≤±120° | |
| Four-jaw single-action chuck | Φ500mm | |
| Powder feeder | Double cylinder pneumatic powder feeder | |
| Cladding head | Annular high-speed cladding nozzle + powder distributor | |

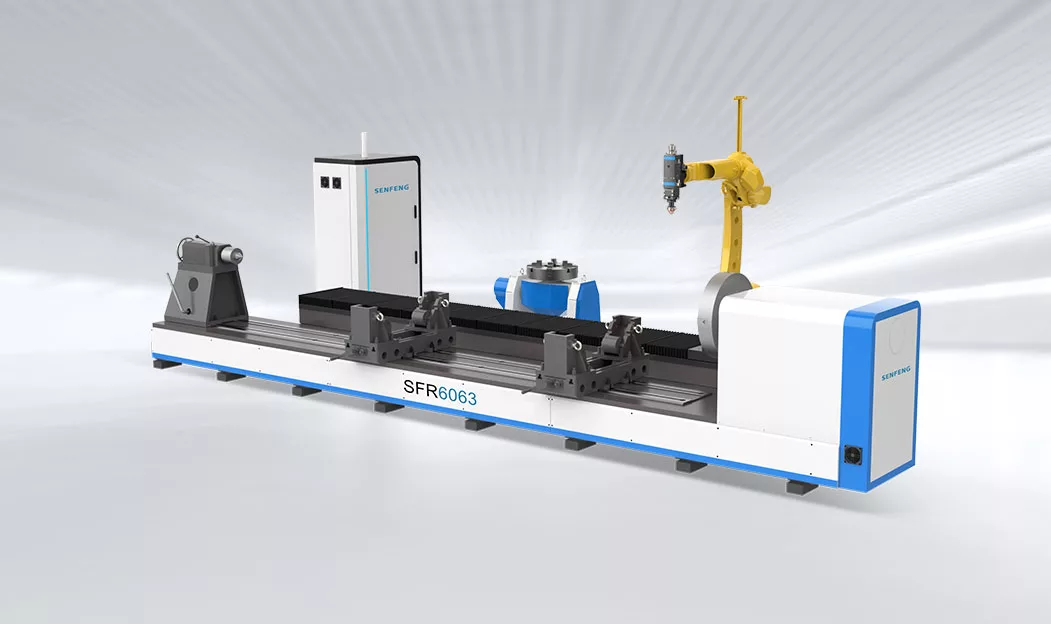

SFR6063 Robotic Laser Cladding Machine
- SENFENG
- SFR6063
All-round laser cladding of various shapes can be realized.
