SFMR02 is a mobile laser cladding equipment developed by Senfeng. It is highly integrated with a compact layout, which makes it easy to move, to provide in-place machining solutions. Upon arrival at the customer site, the cladding system can be quickly ready for work. After the job is complete, the system can be disassembled and transported to the next job site. It can greatly save customer labor and site costs and significantly improve work efficiency.
SFMR02 mobile laser cladding equipment can be used for multiple purposes in one machine and realize the cladding of shafts, curved surfaces, and special-shaped parts.
- Inner hole laser cladding optional
- More precise clad placement
- Smaller overall size
| Name | Technical parameters | ||
| Laser power | 6kW | ||
| Water chiller | HL-6000-QG2/2 | ||
| Robot cladding system | Industrial robot | Model | M-10iD/12 |
| Wingspan | 1,441mm | ||
| Load | 12kg | ||
| Repeated positioning accuracy | ±0.02mm | ||
| Powder feeder | Double barrel pneumatic powder feeding | ||
| Cladding head | Annular high-speed cladding nozzle + powder distributor | ||

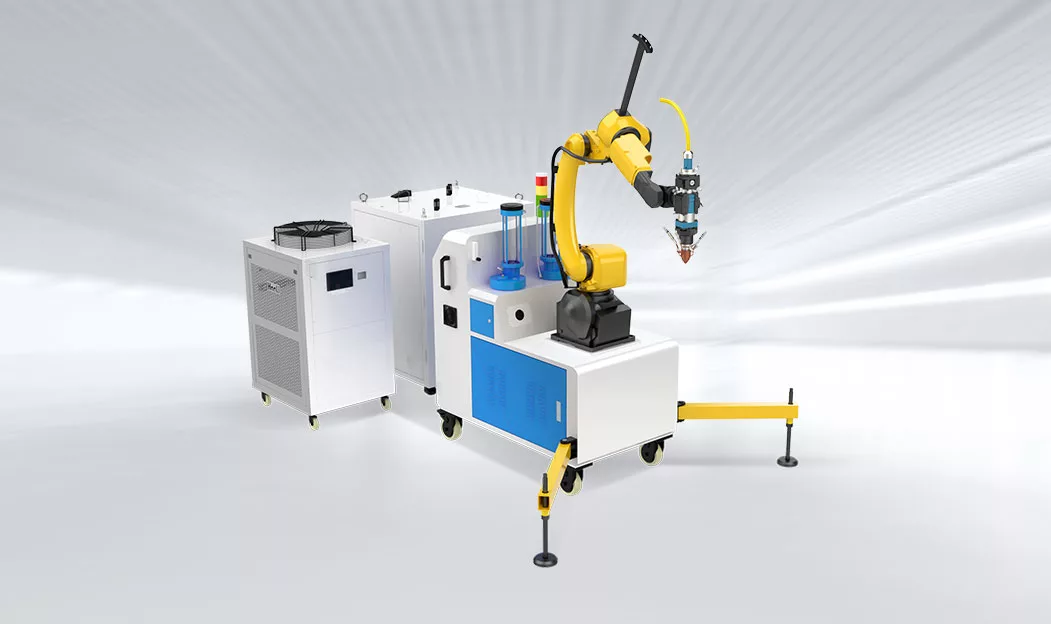

SFMR02 Mobile Robot Laser Cladding Machine
- SENFENG
- SFMR02
Can be moved to the site for cladding processing.
