On the basis of being committed to global laser services, SFHS3050 high-speed laser cladding machine is an advanced environmentally-friendly remanufacturing equipment. The metal additive combined with high-energy laser beams can give full play to the efficiency advantage, so that the additive and the material can be combined to process the finished product at one time, avoiding the relocation.
By depositing the powder material on the surface of the part, a high-performance protective coating is prepared, thereby strengthening the surface hardness to improve upon the materials inherent susceptibility to corrosion, wear and oxidation.
- Consistent layer thicknesses
- Denser coatings with little or no porosity
- Helps reduce processing time
- Inner hole laser cladding optional
- Low heat input process and low distortion
| SFHS3050 Laser power | 6kW | |
| Powder feeder | Double barrel pneumatic powder feeding | |
| Cladding head | Equipped with four-point nozzle + powder distributor, high-speed ring nozzle + powder distributor | |
| Single layer thickness | 0.1-1.5mm | |
| Deposition efficiency | 0.3-1.0㎡/h | |
| Substrate dilution rate | ＜5% | |
| Powder utilization | ＞90% | |
| Control system | KND | |
| Drive system | KND | |
| Effective itinerary (customizable) | X | 500mm |
| Y | 500mm | |
| Z | 3,000mm | |
| C | 360° continuous rotation | |
| Headstock (customizable) | Chuck diameter | φ500mm（Three-jaw self-centering） |
| Chuck clamping range | Φ25-φ500mm | |
| Maximum turning diameter of workpiece | Φ800mm | |
| Maximum length of workpiece | 3m | |
| Maximum load | 3t | |
| Spindle speed | 200r/min（Infinitely variable speed） | |
| Adjustable angle of cladding head A-axis (manual) | ±30° | |
| Powder collection device | Follow-up powder receiving tray | |
| Voltage | AC380V/50Hz | |
| Total weight | About 8t | |

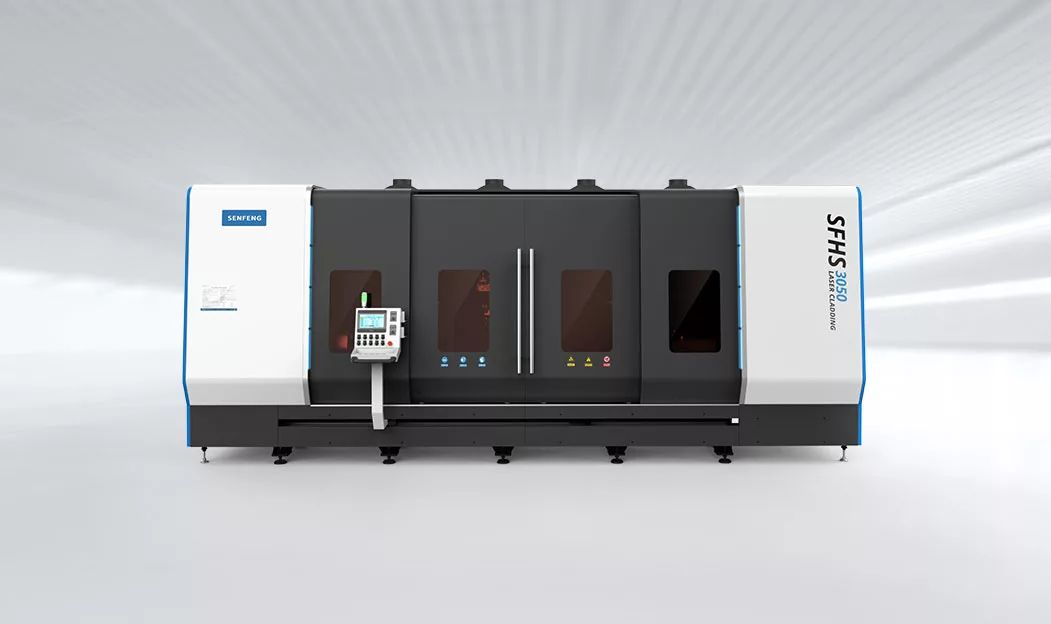

SFHS3050 Ultra-high Speed Laser Cladding
- SENFENG
- SFHS3050
Fully enclosed laser cladding equipment.
