SFH3050 is an ultra-high speed laser cladding machine independently developed by Senfeng. With the characteristics of high efficiency, low cost and environmental protection, it can meet the application requirements of coating manufacturing and quick repair of shaft parts of various specifications.
The self-developed high-power fiber laser source is equipped with a high-speed laser cladding head and a high-speed laser cladding nozzle, which can realize efficient and high-precision cladding processing of workpieces.
- Inner hole laser cladding optional
- Repair with high efficiency and precision
- Various surface condition adaptive
- Without secondary operations
| SFH3050 Laser power | 6kW | |
| Powder feeder | Double barrel pneumatic powder feeding | |
| Cladding head | High-speed ring nozzle + powder distributor | |
| Control system | KND | |
| Drive system | KND | |
| Effective itinerary (customizable) | X | 500mm |
| Y | 500mm | |
| Z | 3,000mm | |
| C | 360° continuous rotation | |
| Headstock (customizable) | Chuck diameter | φ500mm（Three-jaw self-centering） |
| Chuck clamping range | Φ25-φ500mm | |
| Maximum turning diameter of workpiece | Φ800mm | |
| Maximum length of workpiece | 3m | |
| Maximum load | 3t | |
| Spindle speed | 200r/min（Infinitely variable speed） | |
| Adjustable angle of cladding head A-axis (manual) | ±30° | |
| Powder collection device | Follow-up powder receiving tray | |
| Voltage | AC380V/50Hz | |
| Total weight | About 6.5t | |

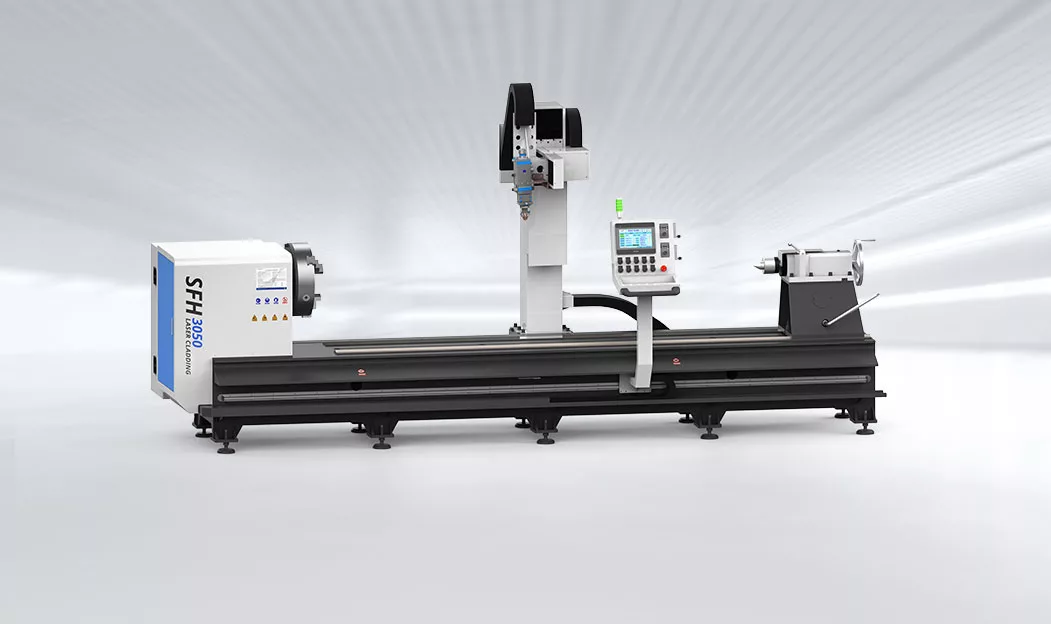

SFH3050 Ultra-high Speed Laser Cladding Machine
- SENFENG
- SFH3050
Open-type laser cladding equipment.
